Titanium Tube Fittings

Home > Titanium > Titanium Tube Fittings

Situated in the heart of Hamilton’s industrial landscape, Mason Tubefittings has built its reputation on a foundation of precision and local reliability. We specialise in the craft of titanium tube fittings, offering a robust solution for industries where failure is not an option. Our focus is on delivering components that combine exceptional strength with an innate resistance to the most challenging environments, ensuring our clients receive not just a product, but a promise of enduring performance and support from a trusted New Zealand manufacturer.

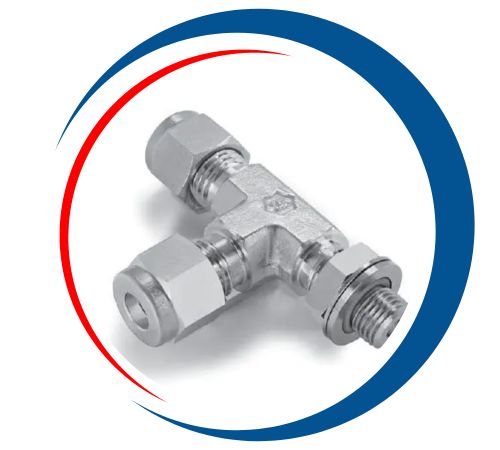

Titanium Instrumentation Tube Fittings Supplier in Hamilton, Titanium Double Ferrule Tube Fittings Price List in Tauranga, Titanium Back Ferrule Manufacturer in Auckland, Titanium Single Ferrule Fittings In Dunedin, Titanium Bulkhead Union, Titanium Ferrule Fittings Exporter in Tauranga, Titanium Instrumentation Fittings Manufacturer in Wellington, Titanium Compression Tube Fittings in Hamilton, New Zealand.

Our titanium tube fittings are crafted from high-grade alloys, predominantly Ti 6Al-4V (Grade 5), which provides an outstanding strength-to-weight ratio that is significantly greater than many types of steel. This material is not only remarkably strong but also incredibly resilient, boasting excellent fatigue resistance and the ability to maintain its integrity under high pressures. The natural formation of a protective oxide layer gives these fittings their legendary corrosion resistance, ensuring they perform reliably without degrading in harsh chemical or saline atmospheres.

Titanium Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 6000 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Titanium Tube Fittings Chemical Composition

Grade	Ti	C	Fe	H	N	O	Al	V
Titanium Tube Fittings	99.2 min	0.1 max	0.3 max	0.015 max	0.03 max	0.25 max	–	–

Titanium Tube Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Titanium Tube Fittings	4.5 g/cm3	1665 °C (3030 °F)	Psi – 49900 , MPa – 344	Psi – 39900 , MPa – 275	20 %

Top Titanium Tube Fittings Manufacturing Company in Hamilton

At Mason Tube Fittings, we are the largest supplier, manufacturer, and exporter of Titanium Tube Fittings in Hamilton, New Zealand. Our advanced manufacturing facilities, strategically located in the New Zealand, allow us to provide high-quality solutions tailored to your specific requirements. With a substantial inventory of over 16,000 tons of top-grade stainless steel materials, we are well-equipped to meet your needs promptly. Our commitment to excellence and efficiency ensures that we consistently maintain available stock to support your demands.

Types of Titanium Tube Fittings

Titanium Tube Fittings Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Titanium Tube Fittings	3.7035	R50400

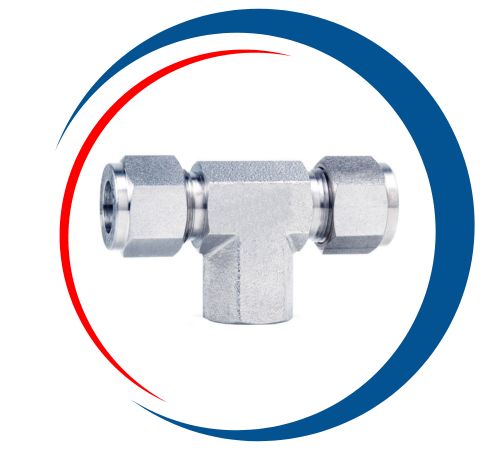

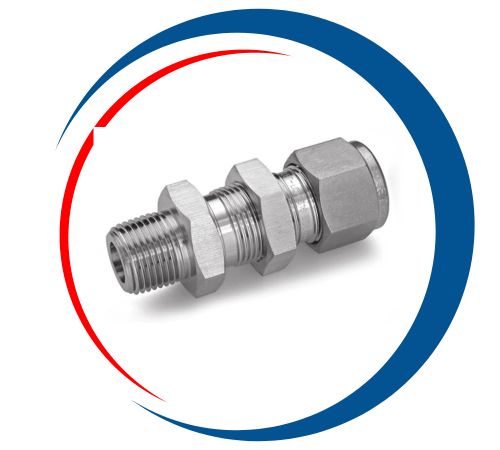

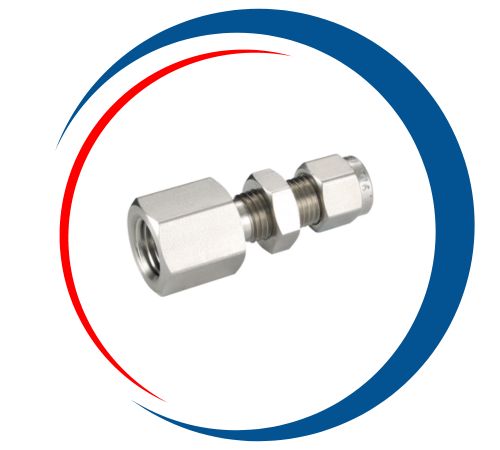

Titanium Bulkhead Union, Titanium Alloy Tube To Union, Titanium Instrumentation Tube Fittings Price in Hamilton, Titanium Male Branch Tee Supplier in Tauranga, Titanium Bulk Head Female Connector Manufacturer in Auckland, Titanium Single Ferrule Tube Fittings Price in Dunedin, Titanium Male Run Tee Supplier And Manufacturer in Wellington, Titanium Male Elbow In Hamilton, New Zealand.

Largest Manufacturer and Supplier of Titanium Tube Fittings in Hamilton, New Zealand

At Mason Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Titanium Tube Fittings in Hamilton, New Zealand. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the New Zealand, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Titanium Tube Fittings Uses

The unique properties of our titanium fittings make them indispensable in sectors where corrosion and weight are critical factors. They are extensively used in the aerospace industry for fuel and hydraulic systems, and in chemical processing plants to handle aggressive media. Their biocompatibility is crucial for medical and pharmaceutical applications, while their saltwater resistance makes them a perfect choice for marine and offshore oil and gas installations. From high-performance racing teams to cutting-edge research facilities, these fittings provide a reliable connection where ordinary materials would quickly falter.
