Incoloy Tube Fittings

Home > Incoloy > Incoloy Tube Fittings

Monib Stainless is a well-respected manufacturer and supplier located in Safat, Kuwait, specializing in high-quality Incoloy Tube Fittings designed for tough industrial applications. Known for their precision engineering and rigorous quality control, Monib Stainless provides fittings that excel in high-temperature and corrosive environments. Our Incoloy Tube Fittings are crafted to meet international standards, ensuring top-notch dimensional accuracy, leak-proof connections, and a long lifespan. With a strong focus on customer satisfaction, competitive pricing, and timely delivery, Monib Stainless caters to the oil & gas, petrochemical, power, and marine sectors throughout Kuwait and the Gulf region.

Incoloy Instrumentation Tube Fittings Supplier in Hamilton, Incoloy Double Ferrule Tube Fittings Price List in Tauranga, Incoloy Back Ferrule Manufacturer in Auckland, Incoloy Single Ferrule Fittings In Dunedin, Incoloy Bulkhead Union, Incoloy Ferrule Fittings Exporter in Tauranga, Incoloy Instrumentation Fittings Manufacturer in Wellington, Incoloy Compression Tube Fittings in Hamilton, New Zealand.

Incoloy tube fittings are made from nickel-iron-chromium alloys, typically featuring nickel (30–45%), chromium (19–23%), and iron as the primary component, along with possible additions of molybdenum, copper, or aluminum based on the specific grade. This unique composition grants them remarkable resistance to oxidation, carburization, and chloride stress corrosion cracking. On the mechanical side, Incoloy fittings boast high tensile and yield strength, impressive creep and rupture strength at elevated temperatures, and good ductility. They maintain their structural integrity even under extreme pressure and thermal cycling conditions.

Incoloy Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 8250 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Incoloy Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Al	Ti	Fe	Ni	Cr
Incoloy Tube Fittings	0.10 max	0.50 max	0.50 max	0.015 max	0.40 max	0.40 max	5.0 max	58.0 min	20.0 – 23.0

Incoloy Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa -930	Psi – 75,000 , MPa – 517	42.5 %

Types of Incoloy Tube Fittings

Incoloy Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Incoloy Tube Fittings	N08825	2.4858	NC22DNB4M	NiCr22Mo9Nb	NCF 825	NA 21	ЭП703	ЭИ602

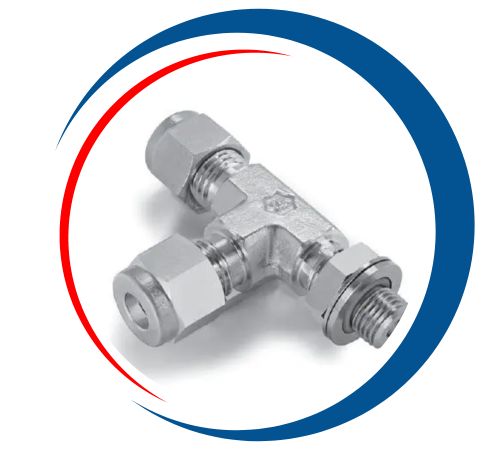

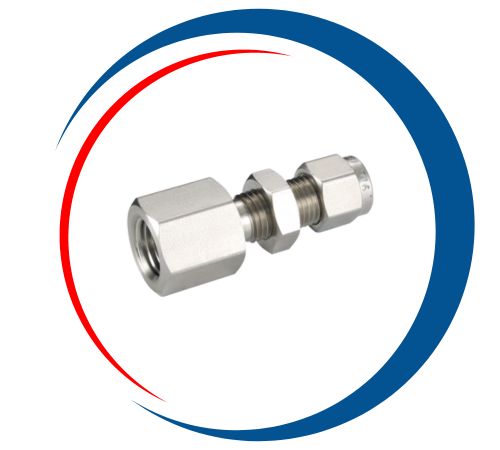

Incoloy Bulkhead Union, Incoloy Alloy Tube To Union, Incoloy Instrumentation Tube Fittings Price in Hamilton, Incoloy Male Branch Tee Supplier in Tauranga, Incoloy Bulk Head Female Connector Manufacturer in Auckland, Incoloy Single Ferrule Tube Fittings Price in Dunedin, Incoloy Male Run Tee Supplier And Manufacturer in Wellington, Incoloy Male Elbow In Hamilton, New Zealand.

Largest Manufacturer and Supplier of Incoloy Tube Fittings in Hamilton, New Zealand

At Mason Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Incoloy Tube Fittings in Hamilton, New Zealand. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the New Zealand, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Incoloy Tube Fittings Uses

Incoloy Tube Fittings are widely utilized in industries that demand dependable performance in high-temperature and corrosive settings. You’ll find them in oil and gas processing systems, petrochemical plants, and chemical handling equipment. They’re also commonly used in power generation, heat exchangers, boilers, condensers, and nuclear facilities. In marine and offshore environments, Incoloy fittings offer excellent resistance to seawater corrosion. Additionally, they find applications in aerospace, pollution control, and various other sectors where durability and reliability are crucial.
