Hastelloy Tube Fittings

Home > Hastelloy > Hastelloy Tube Fittings

Based in the industrial heart of Hamilton, New Zealand, Mason Tubefittings is your trusted local partner for high-performance fluid system components. We specialise in the manufacture and supply of precision Hastelloy tube fittings, crafted for situations where standard materials simply won’t hold up. For industries facing extreme chemical, temperature, and pressure demands, our dedication lies in providing robust, reliable solutions that ensure system integrity and safety right from our workshop to your application.

Hastelloy Instrumentation Tube Fittings Manufacturer in Hamilton, Hastelloy Ferrule Tube Fittings Exporter in Tauranga, Hastelloy Union Elbow Exporter in Wellington, Hastelloy Male Connector Distributor in Hamilton, Hastelloy Female Cap Suppliers in Wellington, Hastelloy Male Bulkhead Connector Supplier in Auckland, Hastelloy Back Ferrule Manufacturers in Tauranga, New Zealand

The exceptional nature of Hastelloy tube fittings stems from their unique composition, primarily a nickel-chromium-molybdenum alloy. This specific blend gives them outstanding mechanical properties, including tremendous tensile strength and excellent fatigue resistance, even when exposed to high temperatures. More importantly, they retain this toughness while offering superb formability and ductility, allowing for the creation of secure, leak-tight connections that are built to last under the most punishing conditions.

Hastelloy Tube Fittings Specifications

Hastelloy Tube Fittings specification (ASTM / ASME)	ASTM B366, ASME SB366
Working Pressure	Up to 6,000 psi (based on severity of application)
Two-Ferrule Tube Fittings	Pressure Ratings : Up to 11 000 psig (760 bar)
Medium-Pressure, Gaugeable	Pressure Ratings: Up to 20 000 psig (1378 bar) Temperature Ratings: Up to 1000°F (537°C)
High-Pressure Hastelloy C276 Tube Fittings	Pressure Ratings: Up to 60 000 psig (4134 bar) Temperature Ratings: Up to 1000°F (537°C) Materials of construction: 316 Stainless Steel Tube Fittings, Alloy 2507, Inconel 625 Tube fittings
Hastelloy Tube Fittings Special sizes	22mm Hastelloy C276 tube fittings 25mm Hastelloy C22 tube fittings 32mm Hastelloy B2 tube fittings 50mm Hastelloy Ferrule tube fittings
Hastelloy Compression Fittings End Connections	Types: NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Hastelloy C276 Tube Fittings Sizes	1/16 to 2 in.; 2 to 50 mm 1/4, 3/8, 1/2, 9/16, 3/4 in.; 6, 10, 12 mm
Brand Name	Hastelloy Tube fittings
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Types	Unions, NPT, medium-pressure cone and thread adapters, male SAE/MS, reducers, port connectors, tube adapters, caps, plugs
Hastelloy Hydraulic Fittings Specification	Items Made from Hex – ASTM B574 ; Items made from Round Bar- ASTM B564
Tube Size	1/16”OD to 2”OD, 2mm OD to 50mm OD
Threads	NPT (ANSI B1.20.1), BSP, BSPT (ISO thread configurations), UNF, SAE etc.
PTFE Standards	ASTM D1710, ASTM D3294
Hastelloy Ferrule Tube Fittings Applicable Temperature	150-400°C
Hastelloy C276 Tube Fittings Packing Details	As your detail request Normally carton size – 211614CM/312116CM/364550CM Normally wooden box size – 382717CM Normally 1piece/opp, 10-20pcs/carton

Hastelloy Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
C276	0.010 max	1.00 max	0.08 max	0.03 max	2.50 max	50.99 min*	14.50 – 16.50	4.00 – 7.00	15.00 – 17.00	0.04 max
C22	0.010 max	0.50 max	0.08 max	0.02 max	2.50 max	50.015 min*	20.00 – 22.50	2.00 – 6.00	12.50 – 14.50	0.02 max
B2	0.02 max	1.0 max	0.1 max	0.03 max	1.0 max	Bal	1.0 max	2.0 max	26 – 30	0.04 max

Hastelloy Tube Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C276	8.89 g/cm3	1370 °C (2500 °F)	Psi – 1,15,000 , MPa – 790	Psi – 52,000 , MPa – 355	40 %
Hastelloy C22	8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000 , MPa – 690	Psi – 45000 , MPa – 310	45 %
Hastelloy B2	9.2 g/cm3	1370 °C (2500 ºF )	Psi – 1,10,000 , MPa – 760	Psi – 51000 , MPa – 350	40 %

Top Hastelloy Tube Fittings Manufacturing Company in Hamilton

At Mason Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hastelloy Tube Fittings in Hamilton, New Zealand. Our advanced manufacturing facilities, strategically positioned in the New Zealand, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

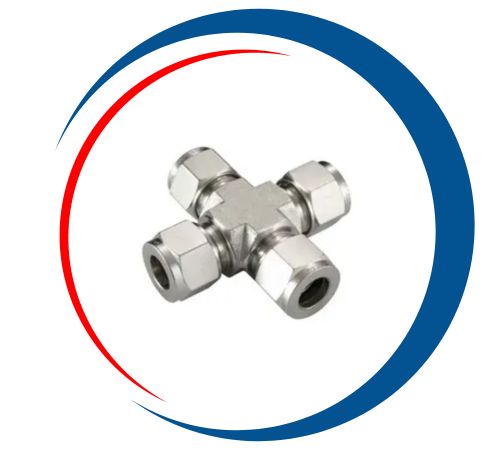

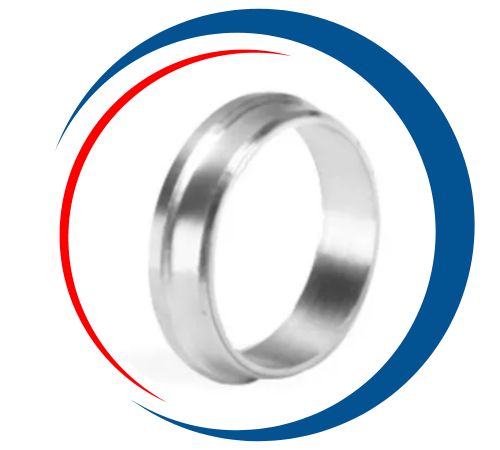

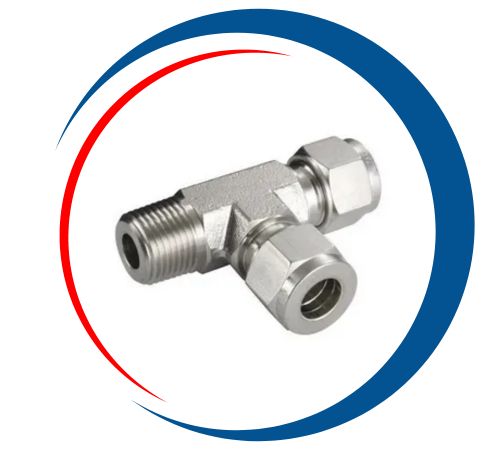

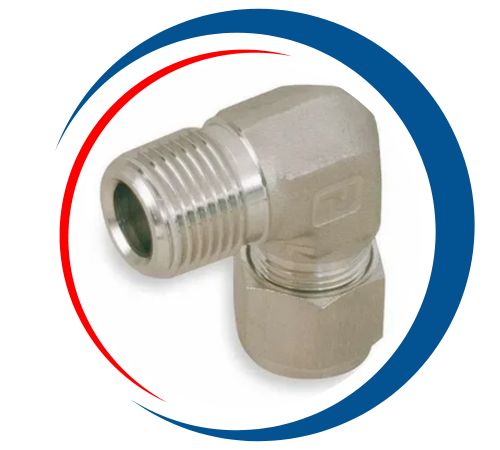

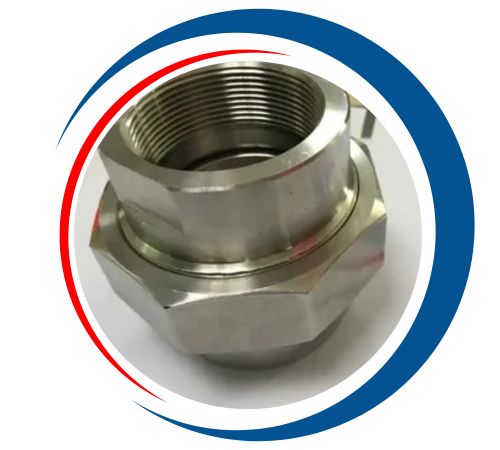

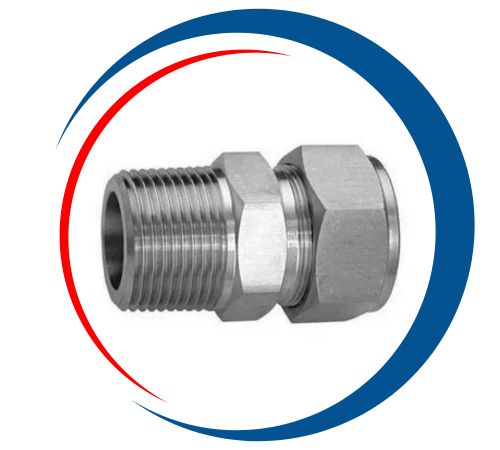

Types of Hastelloy Tube Fittings

Hastelloy Tube Fittings Size Range

OD Size: 6mm to 38mm	Inch: 1/4″ to 1 1/2″

Hastelloy Male Branch Tee Supplier in Hamilton, New Zealand, Hastelloy Female Connector Exporter in Dunedin, Hastelloy Reducing Hex Coupling Supplier in Wellington, Hastelloy Blanking Plug Stockist in Auckland, Hastelloy Front Ferrule Stockist in Hamilton, Hastelloy Male Branch Tee Exporter in Wellington, Hastelloy Male Bulkhead Connector Supplier in Tauranga, New Zealand

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Hastelloy Tube Fittings Supplier in Hamilton, New Zealand

Mason Tube Fittings is a leading supplier and stockist of premium Hastelloy Tube Fittings in Hamilton, New Zealand. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hastelloy Tube Fittings Uses

Because of their remarkable resilience, Hastelloy tube fittings are indispensable in industries where failure is not an option. You will find them confidently managing aggressive media in chemical processing plants, handling high-purity streams in pharmaceuticals, and standing up to the harsh environments of offshore oil and gas production. They are also crucial in pollution control systems and nuclear power applications, providing a reliable seal for anything from concentrated acids to corrosive gases where safety and longevity are absolutely paramount.
