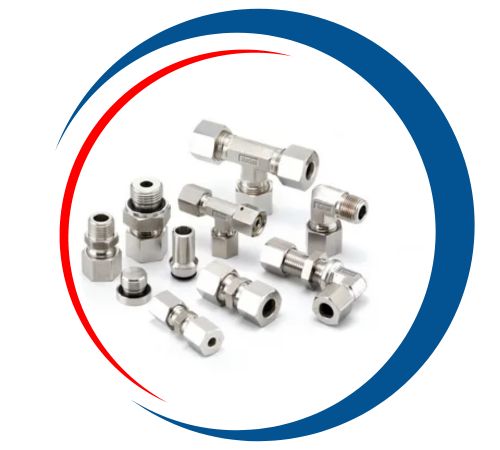

Monel Hydraulic Fittings

Home > Monel > Monel Hydraulic Fittings

Based in the industrious heart of Hamilton, New Zealand, Mason Tubefittings has built a strong reputation for precision and reliability in the demanding world of hydraulic systems. We specialize in manufacturing and supplying high-performance Monel hydraulic fittings, crafted to meet the toughest challenges. Our commitment is to provide local industries, from marine engineering to chemical processing, with components that offer exceptional strength and longevity, ensuring your operations run smoothly and efficiently with trusted, locally-made quality.

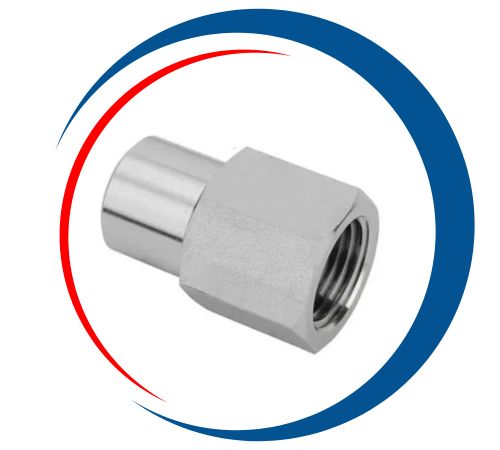

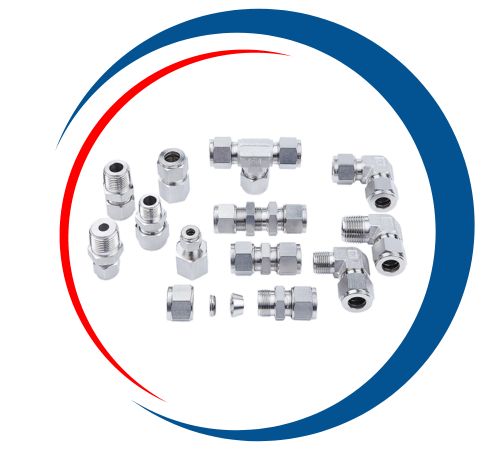

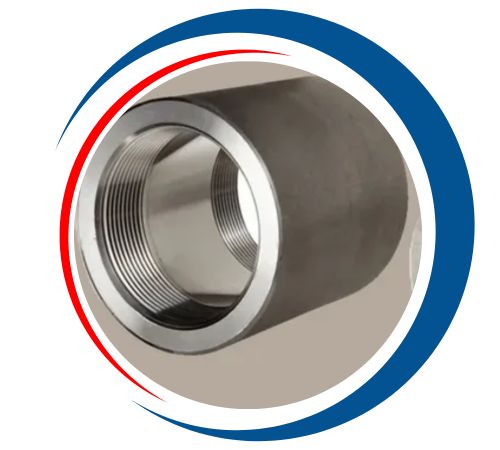

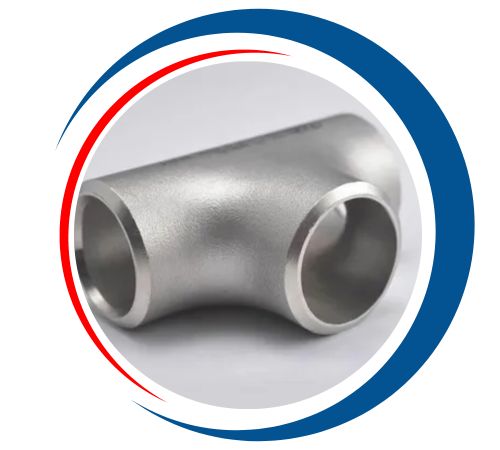

Monel Hydraulic Female Stud Coupling Manufacturer in Auckland, Monel Hydraulic Straight Coupling in Dunedin, Monel Hydraulic Tube Fittings Supplier in Hamilton, Monel Hydraulic Male Stud Coupling Price List in Tauranga ,Monel Equal Hydraulic Tee Fittings Manufacturer in Wellington, Monel Hydraulic Equal Elbow Fittings Exporter in Tauranga, Monel Hydraulic Equal Cross Hydraulic Fittings in Hamilton, New Zealand

The exceptional quality of Monel comes from its unique composition, a nickel-copper alloy renowned for its superb mechanical properties. These fittings naturally possess a remarkable resistance to corrosion, especially against saltwater, acids, and caustic solutions, far outperforming ordinary steel. They also maintain excellent strength and toughness across a very wide temperature range, from deep cold to high heat. This inherent durability means they can withstand high pressures and punishing environments without degrading, offering a reliable and long-lasting solution for critical systems.

Monel Hydraulic Fittings Specifications

DESIGN STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	MONEL 400, MONEL K500

WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
CONNECTIONS	TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE
	WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL
BODY TYPE	FORGED, BAR STOCK
SURFACE	EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH

Monel Hydraulic Fittings Chemical Composition

Designation

Co%

Cr%

Mo%

Ni%

Ai%

Cu%

Nb/Cb Ta%

Ti%

Fe%

Sonstige Autres-Other %

Monel 400

0.12

–

65.0

–

32.0

–

1.5

Mn 1.0

Monel 401

0.10

–

43.0

–

53.0

–

0.75

Si 0.25; Mn 2.25

Monel 404

0.15

–

52.0-57.0

–

0.05

rest/bal

–

0.50

Mn 0.10; Si 0.10;S o.024

Monel 502

0.10

–

63.0-17.0

–

2.5-3.5

rest/bal

–

0.50

2.0

Mn 1.5;Si 0.5; S 0.010

Monel K 500

0.13

–

64.0

–

2.8

30.0

–

0.6

1.0

Mn 0.8

Monel R 405

0.15

–

66.0

–

31.0

–

1.2

Mn 1.0; S 0.04

Monel Hydraulic Fittings Mechanical Properties

Tensile strength, Ultimate	550 Mpa
Tensile strength, Yield	240 Mpa
Elongation at Break	48%

Monel Hydraulic Fittings Physical Properties

Color/appearance	Gray [6]
Luster	Metallic [9]
Melting point	1300 – 1350°C [1]
Density	8.80X103 kg/m3 [2]
State of matter at room temperature (normal phase)	Solid [9]
Hardness	110-150 HB [7]
Thermal Conductivity	21.8 W/(m K) [1]
Resistivity	54.7X10-8 ohm-m [2]
Tensile strength (annealed)	550 MPa [2]
Specific heat capacity	427 J/(kg*K) [2]
Modulus of elasticity	179 GPa [2]

Monel Hydraulic Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Monel 400	2.4360	N04400	NW 4400	NA 13	МНЖМц 28-2,5-1,5	NU-30M	NiCu30Fe
Monel K500	2.4375	N05500	–	–	–	–	–

Top Monel Hydraulic Fittings Manufacturing Company in Hamilton

At Mason Tube Fittings, we are the largest supplier, manufacturer, and exporter of Monel Hydraulic Fittings in Hamilton, New Zealand. Our advanced manufacturing facilities, strategically positioned in the New Zealand, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Monel Hydraulic Fittings

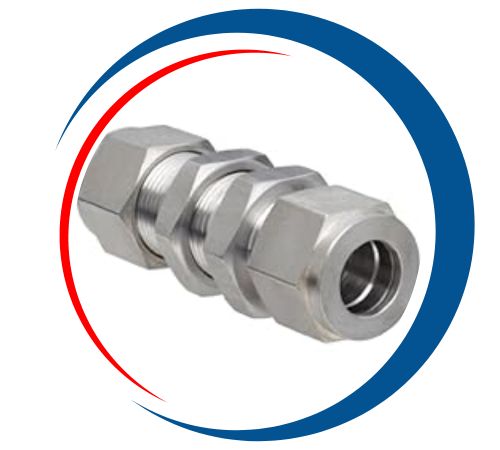

Monel Equal Cross Hydraulic Fittings Tube Fittings Supplier And Manufacturer in Wellington, Hydraulic Monel Swivel Fittings Manufacturer in Auckland, Monel Hydraulic Male Stud Coupling Price in Dunedin, Monel Hydraulic Straight Coupling in Hamilton, New Zealand, Hydraulic Monel Bulkhead Union Price in Hamilton, Monel Hydraulic Banjo Elbow Supplier in Tauranga

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Monel Hydraulic Fittings in Hamilton, New Zealand

Mason Tube Fittings is a leading supplier and stockist of premium Monel Hydraulic Fittings in Hamilton, New Zealand. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Monel Hydraulic Fittings Uses

You’ll typically find our Monel hydraulic fittings hard at work in environments where failure is not an option. They are indispensable in marine and offshore applications, handling seawater ballast systems and hydraulic controls on ships and oil rigs. The chemical processing industry relies on them for transferring aggressive acids and solvents safely. They are also vital in oil and gas production, aerospace hydraulics, and any situation demanding unwavering performance under corrosive conditions, ensuring system integrity where it matters most.
