Inconel Hydraulic Fittings

Home > Inconel > Inconel Hydraulic Fittings

Based in the industrious heart of Hamilton, New Zealand, Mason Tubefittings stands as a dedicated manufacturer and supplier specializing in the exceptional performance of Inconel hydraulic fittings. Our focus is on crafting components that go beyond the ordinary, designed specifically for the most punishing industrial environments. We understand that reliability is non-negotiable, and our commitment lies in providing robust fittings that ensure the integrity of critical hydraulic systems where failure is simply not an option.

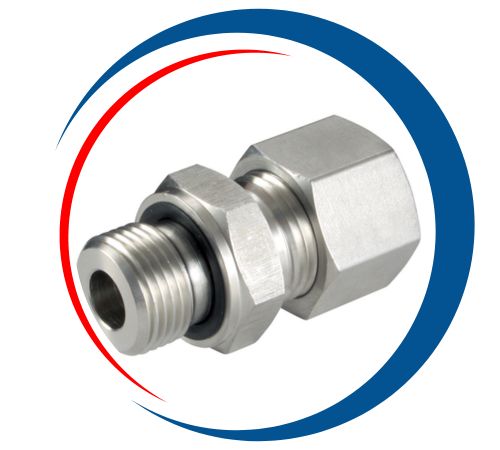

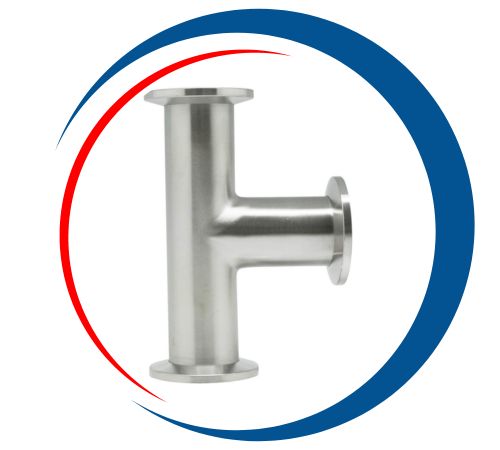

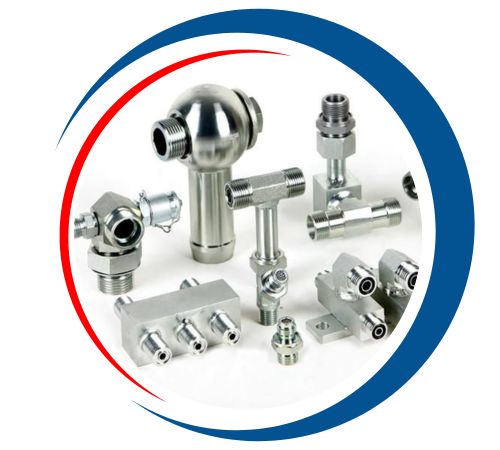

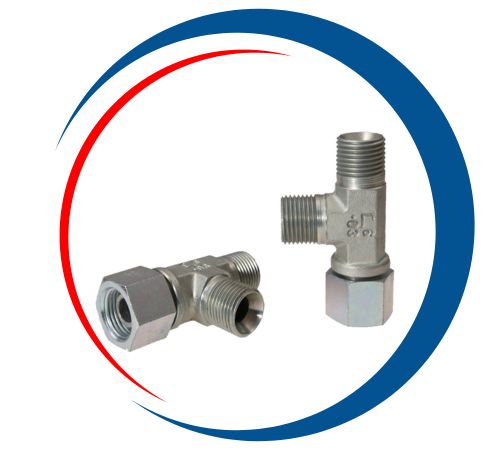

Inconel Hydraulic Female Stud Coupling Manufacturer in Auckland, Inconel Hydraulic Straight Coupling in Dunedin, Inconel Hydraulic Tube Fittings Supplier in Hamilton, Inconel Hydraulic Male Stud Coupling Price List in Tauranga ,Inconel Equal Hydraulic Tee Fittings Manufacturer in Wellington, Inconel Hydraulic Equal Elbow Fittings Exporter in Tauranga, Inconel Hydraulic Equal Cross Hydraulic Fittings in Hamilton, New Zealand

The remarkable strength of Inconel hydraulic fittings stems from their unique composition, primarily a nickel-chromium alloy often fortified with elements like molybdenum and niobium. This sophisticated blend grants them an impressive resistance to oxidation and corrosion, even when faced with intense heat and pressure. These fittings maintain their exceptional mechanical properties, including high tensile strength and formidable fatigue resistance, across a wide temperature spectrum, ensuring they don’t become a weak link under extreme operational stress.

Inconel Hydraulic Fittings Specifications

DESIGN STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	INCONEL 625, INCONEL 718, INCONEL 825, INCOLOY 800

WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	6 MM TO 42 MM
CONNECTIONS	TUBE TO MALE THREAD , TUBE TO BUTT WELD , TUBE TO FEMALE THREAD , TUBE TO SOCKET WELD , TUBE TO TUBE , TUBE TO 24* CONE, TUBE TO JIC 37* , TUBE TO ADJUSTBALE STANDPIPE , TUBE TO SWIVEL END
	WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO 24* CONE ,WELD NIPPLE TO SWIVEL
BODY TYPE	FORGED, BAR STOCK
SURFACE	EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH

Inconel Hydraulic Fittings Chemical Composition

Inconel	Element (% By Mass)
Inconel	Ni	Cr	Fe	Mo	Nb	Co	Mn	Cu	Al	Ti	Si	C	S	P	B
600	72.0	14.0–17.0	6.0–10.0				1.0	0.5			0.5	0.15	0.015
617	44.2–56.0	20.0–24.0	3.0	8.0–10.0		10.0–15.0	0.5	0.5	0.8–1.5	0.6	0.5	0.15	0.015	0.015	0.006
625	58.0	20.0–23.0	5.0	8.0–10.0	3.15–4.15	1.0	0.5		0.4	0.4	0.5	0.1	0.015	0.015
690	59.5	30	9.2				0.35	0.01	0.02		0.35	0.019	0.003
718	50.0–55.0	17.0–21.0	Balance	2.8–3.3	4.75–5.5	1.0	0.35	0.2–0.8	0.65–1.15	0.3	0.35	0.08	0.015	0.015	0.006
X-750	70.0	14.0–17.0	5.0–9.0		0.7–1.2	1.0	1.0	0.5	0.4–1.0	2.25–2.75	0.5	0.08	0.01

Inconel Hydraulic Fittings Mechanical Properties

Yield Strength 0.2% Proof (MPa) min	Tensile Strength (MPa) min	Elongation (% in 50mm) min	Hardness
			Brinell (HB) max	Rockwell B (HR B) max
Psi – 75,000 , MPa – 517	Psi – 1,35,000 , MPa -930	42.5	–	–

Inconel Hydraulic Fittings Mechanical Properties

Grade	UNS No	Old British		Euronorm		GOST	Japanese JIS
Grade	UNS No	BS	En	No	AFNOR	GOST	Japanese JIS
Inconel 600 Pipe	N06600	NA 13	NiCr15Fe	2.4816	NC15FE11M	МНЖМц 28-2,5-1,5	NCF 600
Inconel 625	N06625	NA 21	NiCr22Mo9Nb	2.4856	NC22DNB4M	ХН75МБТЮ	NCF 625
Inconel 601	N06601	NA 49	NiCr23Fe	2.4851	NC23FeA	XH60BT	NCF 601
Incoloy 825	N08825	NA 16	NiCr21Mo	2.4858	NFE30C20DUM	ЭП703	NCF 825

Top Inconel Hydraulic Fittings Manufacturing Company in Hamilton

At Mason Tube Fittings, we are the largest supplier, manufacturer, and exporter of Inconel Hydraulic Fittings in Hamilton, New Zealand. Our advanced manufacturing facilities, strategically positioned in the New Zealand, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Inconel Hydraulic Fittings

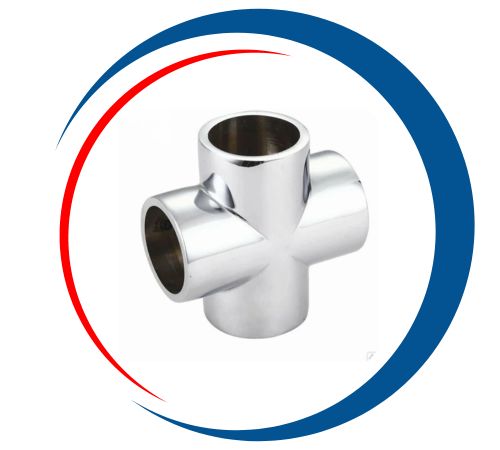

Inconel Equal Cross Hydraulic Fittings Tube Fittings Supplier And Manufacturer in Wellington, Hydraulic Inconel Swivel Fittings Manufacturer in Auckland, Inconel Hydraulic Male Stud Coupling Price in Dunedin, Inconel Hydraulic Straight Coupling in Hamilton, New Zealand, Hydraulic Inconel Bulkhead Union Price in Hamilton, Inconel Hydraulic Banjo Elbow Supplier in Tauranga

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Inconel Hydraulic Fittings in Hamilton, New Zealand

Mason Tube Fittings is a leading supplier and stockist of premium Inconel Hydraulic Fittings in Hamilton, New Zealand. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Inconel Hydraulic Fittings Uses

The real value of these fittings is realized in applications where ordinary materials would quickly falish. You’ll find them ensuring safety and efficiency in aerospace systems, within the high-pressure rigs of the oil and gas industry, and in demanding chemical processing plants. They are essential for high-performance racing vehicles and any situation involving superheated steam. Essentially, Inconel hydraulic fittings are the trusted choice for maintaining secure, leak-free connections in the world’s most challenging and mission-critical hydraulic circuits.
