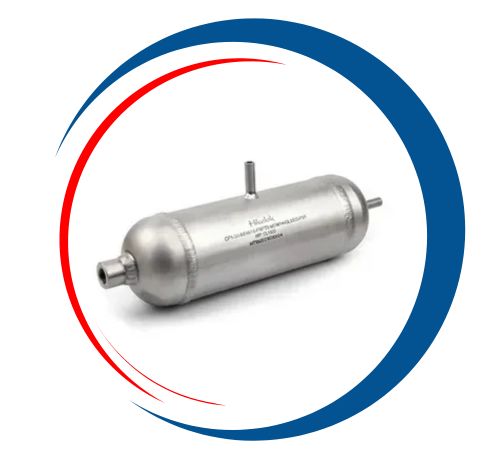

Super Duplex Stainless Steel Condensate Pots

Home > Super Duplex > Super Duplex Stainless Steel Condensate Pots

From the heart of Hamilton, New Zealand, Mason Tubefittings is proud to be a trusted manufacturer and supplier of precision-engineered flow components, including our robust Super Duplex Stainless Steel condensate pots. We understand that industrial reliability starts with quality fabrication, which is why we focus on delivering durable, high-performance solutions built to handle the toughest conditions. Our commitment is to provide not just a product, but a dependable partnership for industries where failure is not an option.

S32750 Super Duplex Stainless Steel Condensate Pots Type A Manufacturer Hamilton, Super Duplex Stainless Steel Type B Condensate Pot with Red Oxide Coated Dealer Tauranga, Super Duplex Stainless Steel Condensate Pot Type C Supplier In Auckland, S32760 Super Duplex Stainless Steel Type A Condensate Pot Exporter In Dunedin, Super Duplex Stainless Steel Type B Condensate Pots with 3 Ports Manufacturer Wellington, Super Duplex Stainless Steel Condensate Pot Type B Supplier Hamilton, New Zealand.

These condensate pots are crafted from Super Duplex Stainless Steel, a material renowned for its exceptional strength and resistance. This advanced alloy offers an excellent mix of high chromium and molybdenum, granting it outstanding resistance to pitting and chloride stress corrosion cracking. The result is a component with mechanical properties far superior to standard stainless steels, including remarkable yield strength and toughness, ensuring it can withstand significant pressure and harsh environments without compromising its integrity.

Super Duplex Stainless Steel Condensate Pots Specifications

Standard : DIN, ASTM, BS and all International Standards.
Number of Ports : 2 ports upto 8 ports, refer to the section below for arrangements.
Working Pressure : 6000 PSIG(41.34 MPa).
Pressure Rating : 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI.
Header Inlet : 1” Female Bsp or Npt threaded to ASME B16.1 or Flanged inlet optional.
Header Outlet/drain : None / or ¼”Male Bsp or Npt threaded to ASME B16.1 or 150# cast fitting.
Pipe size : 2″, 3″, 4″, 5”, 6” and larger size upon request.
Pipe Schedule : 40, 80, 160, XX seamless pipe.
Total Length : Pipe length 8″,10″,12″ and larger length upon request.
Thread Connections : NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11, Butt weld as per ANSI B16.9.

Super Duplex Stainless Steel Condensate Pots Chemical Properties

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N	Fe
S32750	0.030 max	1.20 max	0.80 max	0.035 max	0.020 max	24.00 – 26.00	3.00 – 5.00	6.00 – 8.00	0.24 – 0.32	58.095 min
S32760	0.05 max	1.00 max	1.00 max	0.030 max	0.010 max	24.00 – 26.00	3.00 – 4.00	6.00 – 8.00	0.20 – 0.30	57.61 min

Equivalent of Super Duplex Stainless Steel Condensate Pots

STANDARD	WERKSTOFF NR.	UNS
Super Duplex 2507	1.4410	S32750 / S32760

Top Super Duplex Stainless Steel Condensate Pots Manufacturing Company in Hamilton

At Mason Tube Fittings, we are the largest supplier, manufacturer, and exporter of Super Duplex Stainless Steel Condensate Pots in Hamilton, New Zealand. Our advanced manufacturing facilities, strategically positioned in the New Zealand, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

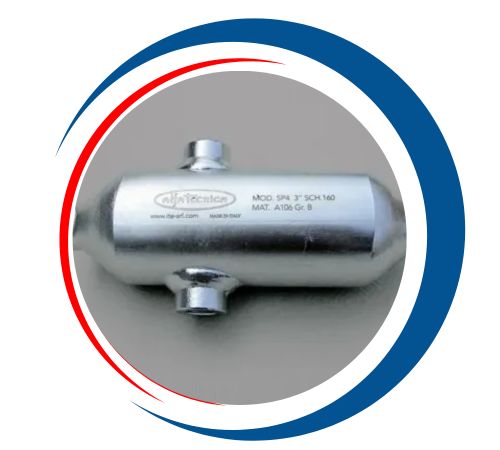

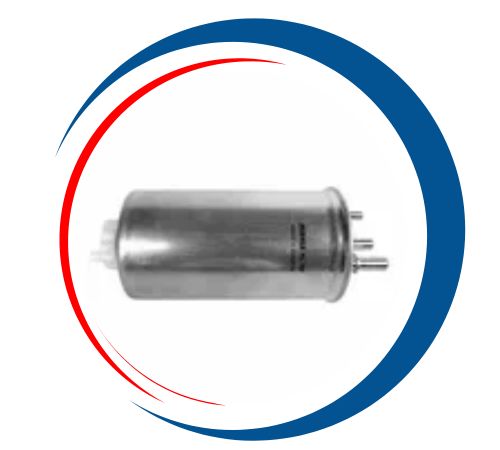

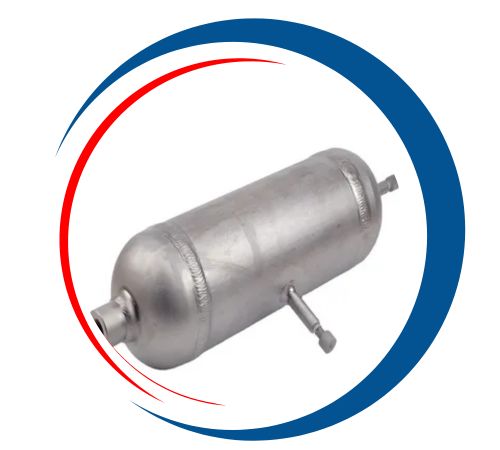

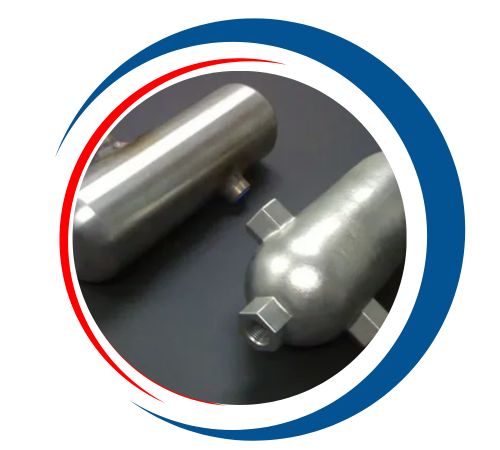

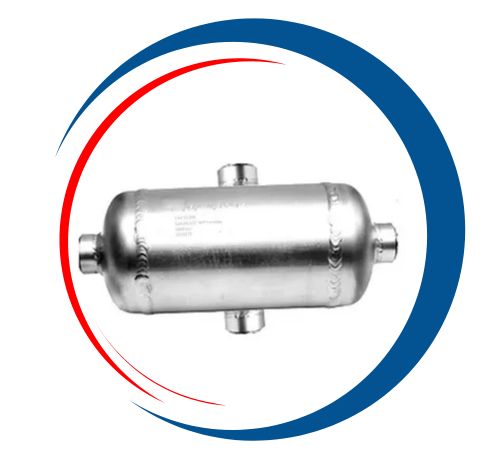

Types of Super Duplex Stainless Steel Condensate Pots

SDSS Type D Condensate Pots Price in Hamilton, S32750 Super Duplex Stainless Steel Type E Condensate Pot Manufacturer & Supplier in Tauranga, Super Duplex Stainless Steel Condensate Pot Type F Supplier in Auckland, Super Duplex Stainless Steel Type D Condensate Pot with Red Oxide Coated Manufacturer & Price in Dunedin, Super Duplex Stainless Steel Type E Condensate Pot with Red Oxide Coated Supplier in Wellington, S32750 Super Duplex Stainless Steel Type F Condensate Pot Supplier In Hamilton, New Zealand.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Super Duplex Stainless Steel Condensate Pots Supplier in Hamilton, New Zealand

Mason Tube Fittings is a leading supplier and stockist of premium Super Duplex Stainless Steel Condensate Pots in Hamilton, New Zealand. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Super Duplex Stainless Steel Condensate Pots Uses

Super Duplex Stainless Steel condensate pots are essential in demanding applications where protection is critical. They are widely used in offshore oil and gas platforms, chemical processing plants, and marine environments to safeguard pressure and level instrumentation from process fluids. By effectively collecting condensate, they ensure accurate readings and prevent damage to sensitive equipment, making them a vital component for maintaining safety, operational efficiency, and system longevity in some of the most challenging industrial settings worldwide.
